You are here:Home > Products > Brass Mesh > Expanded Metal Mesh

Expanded Metal Mesh for Stairs or Walking Road

The picture shows the process of manufacture expanded metal mesh.
Process of manufacture expanded metal mesh.

Brass/copper expanded metal mesh is a slit and stretched metal sheet to form a wide array of opening shapes. The opening shapes could be diamond, hexagon, square, scale hole and so on. Material can be brass or copper, also can be aluminum, stainless steel, carbon steel with copper or brass coating. A square foot of raw material can produce two or three times or more area without scrap. Expanded mesh can be used for chimney caps, handcrafts, window screen, door screen and decorative mesh. Expanded metal sheet with good strength can be used for stairs or walking road.

The picture shows brass expanded metal mesh on the plastic film.
EMM-1: Standard brass expanded metal sheet.
The picture shows copper expanded metal mesh.
EMM-2: Copper expanded metal mesh.
This is a panel of flattened scale hole expanded metal mesh.
EMM-3: Flattened brass scale hole expanded metal sheet.

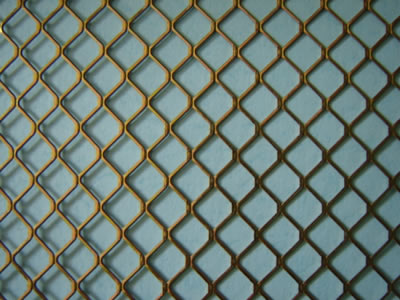

This is a panel of flattened diamond expanded metal mesh.
EMM-4: Flattened diamond expanded metal sheet.

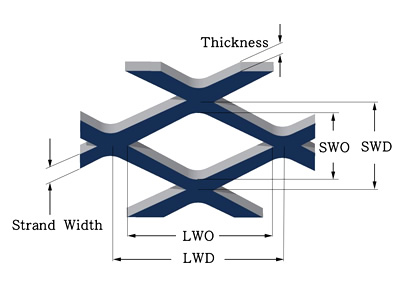

The picture shows strand width, thickness, SWO, SWD, LWO, LWD for a hole of expanded metal sheet.
EMM-5: Introduction the specification term of the expanded metal sheet.

Specification

  • Material: brass, copper, aluminum, stainless steel, carbon steel.
  • Surface treatment: plated copper or brass when using other metals.
  • Mesh type: light, medium, heavy.
  • Opening shape: diamond, hexagon, square, scale hole.
  • Classification: standard, flattened.
  • Width of expanded metal mesh: 0.5-2 m.
  • Length of expanded metal mesh: 0.6-4 m.
  • Specification can be customized.
  • SWD: short way of diamond.
  • LWD: long way of diamond.
  • SWO: short way of opening.
  • LWO: long way of opening.
  • Width: strand width.
Specification of brass/copper expanded metal mesh
Product code Thickness SWD LWD SWO LWO Width
Inch Inch Inch Inch Inch Inch
Standard - brass
EMMS-1 0.204 0.500 1.20 0.312 0.938 0.096
EMMS-2 0.275 0.500 1.20 0.250 0.800 0.188
EMMS-3 0.210 0.923 2.00 0.813 1.750 0.099
Flattened - brass
EMMS-4 0.070 0.500 1.25 0.265 1.000 0.107
EMMS-5 0.048 0.923 2.10 0.750 1.750 0.111
EMMS-6 0.070 0.923 2.10 0.688 1.781 0.106
Standard - copper
EMMS-7 0.140 0.500 1.20 0.438 0.938 0.072
EMMS-8 0.172 0.500 1.20 0.440 0.938 0.088
EMMS-9 0.175 0.500 1.20 0.375 0.938 0.086
Flattened - copper
EMMS-10 0.029 0.500 1.25 0.375 1.000 0.079
EMMS-11 0.039 0.500 1.25 0.312 1.000 0.097
EMMS-12 0.050 0.500 1.25 0.312 1.000 0.096
Specification of expanded metal mesh With copper or brass coating
Product code Thickness SWD LWD SWO LWO Width
Inch Inch Inch Inch Inch Inch
Standard - carbon steel
EMMS-13 0.090 0.500 1.20 0.312 0.938 0.096
EMMS-14 0.090 0.500 1.20 0.220 0.630 0.188
EMMS-15 0.134 0.923 2.00 0.688 1.562 0.150
EMMS-16 0.170 1.000 2.40 0.650 1.600 0.240
EMMS-17 0.183 0.875 2.20 0.450 1.550 0.275
EMMS-18 0.194 1.330 3.00 1.110 2.313 0.203
EMMS-19 0.134 1.330 3.00 1.125 2.375 0.144
EMMS-20 0.134 1.850 4.00 1.563 3.375 0.149
Flattened - carbon steel
EMMS-21 0.078 0.500 1.25 0.265 1.000 0.107
EMMS-22 0.120 0.923 2.10 0.563 1.688 0.165
EMMS-23 0.110 1.330 3.20 1.000 2.563 0.158
Standard - stainless steel
EMMS-24 0.093 0.480 1.20 0.270 0.830 0.113
EMMS-25 0.140 0.923 2.00 0.687 1.562 0.160
EMMS-26 0.140 1.330 3.00 1.125 2.500 0.155
Flattened - stainless steel
EMMS-27 0.080 0.480 1.26 0.220 0.970 0.128
EMMS-28 0.119 0.923 2.10 0.562 1.697 0.165
EMMS-29 0.119 1.330 3.15 0.937 2.625 0.165
Standard - aluminum
EMMS-30 0.081 0.500 1.20 0.375 0.937 0.096
EMMS-31 0.125 0.923 2.00 0.687 1.680 0.169
EMMS-32 0.125 1.330 3.00 1.187 2.500 0.162
Flattened - aluminum
EMMS-33 0.060 0.500 1.27 0.312 1.000 0.105
EMMS-34 0.095 0.923 2.13 0.625 1.750 0.187
EMMS-35 0.095 1.330 3.15 1.000 2.750 0.181

Feature of expanded metal mesh

  • Standard expanded metal mesh has non-skip surface, flattened expanded metal mesh has smooth and flat surface.
  • Elegant appearance, sturdy structure.
  • Durability, corrosion, abrasion, acid and alkali resistance.
  • High utilization rate of materials, without scrap.
  • Permit light, air, liquid, heat, sound to pass.
  • Easy to install.
  • Low cost, long life.

Application of expanded metal mesh

  • Ventilation mesh, decorative mesh.
  • Protection mesh for machine, electric equipment, aquatic products breeding.
  • Screen for window, door, wall, ceiling, facade, roof, retail shelf, signage, partition.
  • Fence for highway, studio, garden, green belt, bridge, stadium.
  • Chimney caps and handcrafts.
  • Used in construction, concrete reinforcement, filtration.
  • Heavy expanded mesh can be used as stair for corridor, oil tank, working platform, escalator, walking road for big ship, heavy model equipment, petroleum well, mine well, boiler, automobile vehicle, footbridge.

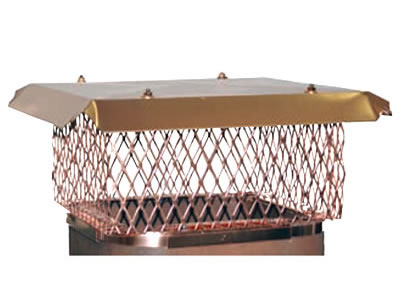

The picture shows copper expanded mesh chimney cap with brass cover.
EMM-6: Copper expanded metal mesh can be used for chimney cap.
The picture shows a wall of expanded metal mesh.
EMM-7: Expanded metal mesh can be used as wall decoration.

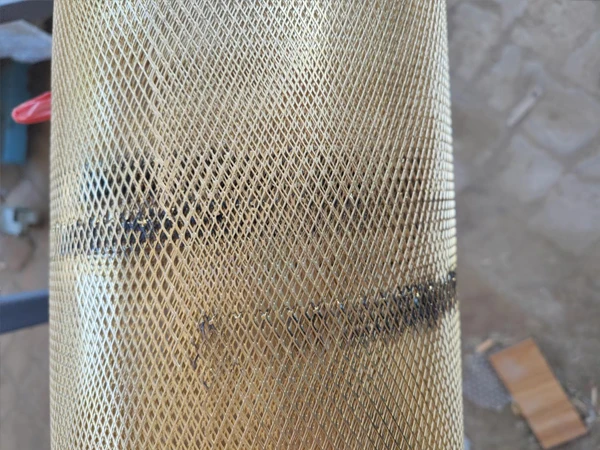

The picture shows a roll of expanded metal mesh.
EMM-8: Light expanded metal mesh can be rolled up.

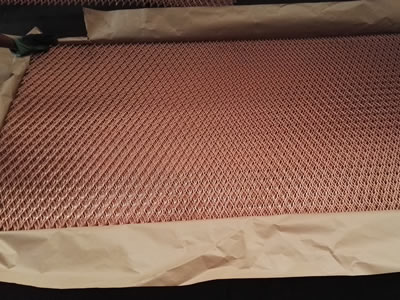

The picture shows heavy expanded metal mesh panels in water proof paper.
EMM-9: Heavy expanded metal mesh in water proof paper.

Packaging

  • Packed in rolls with water proof paper, outside is wooden case or wooden pallet.
  • Heavy expanded metal mesh is packed in panels with wires binding them.
